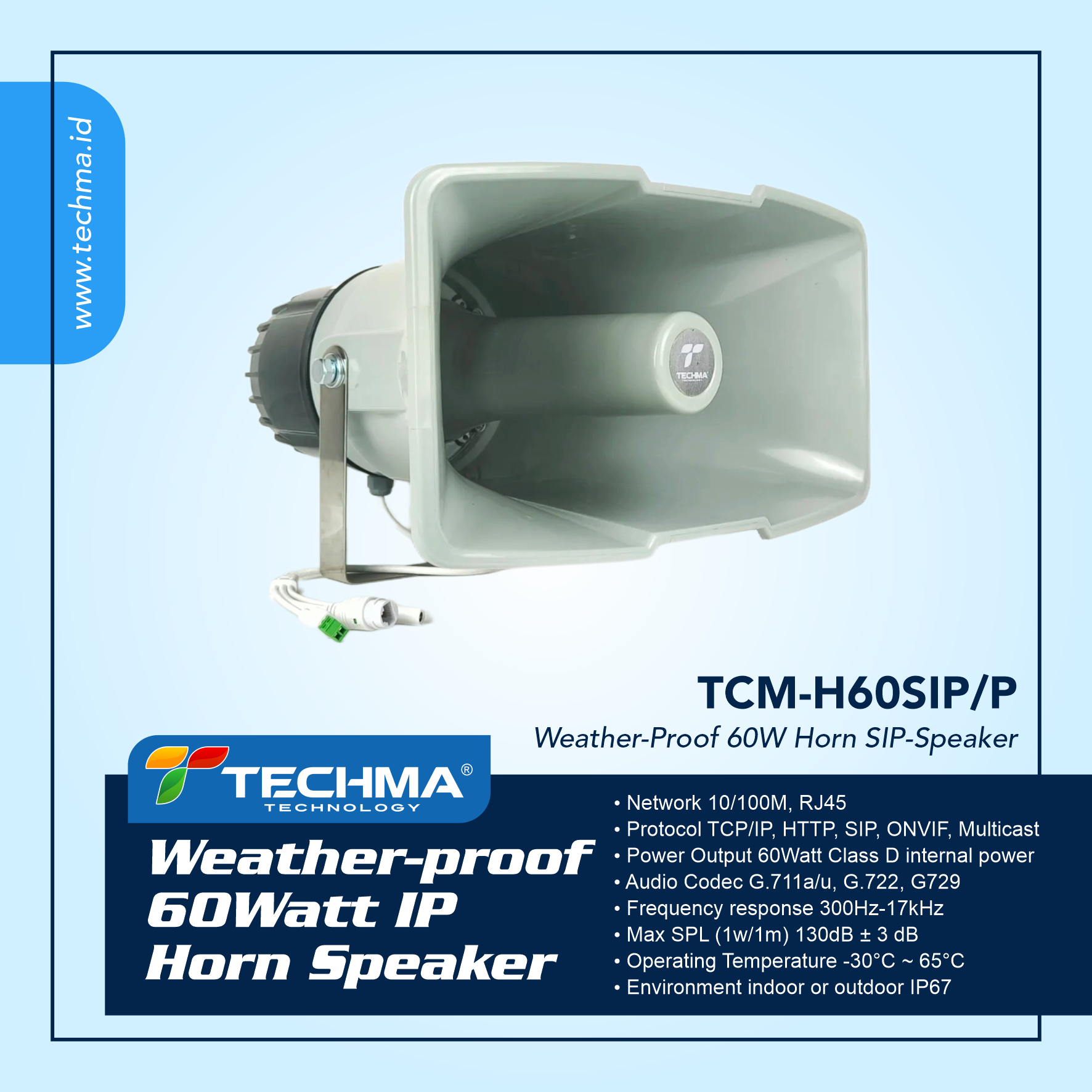

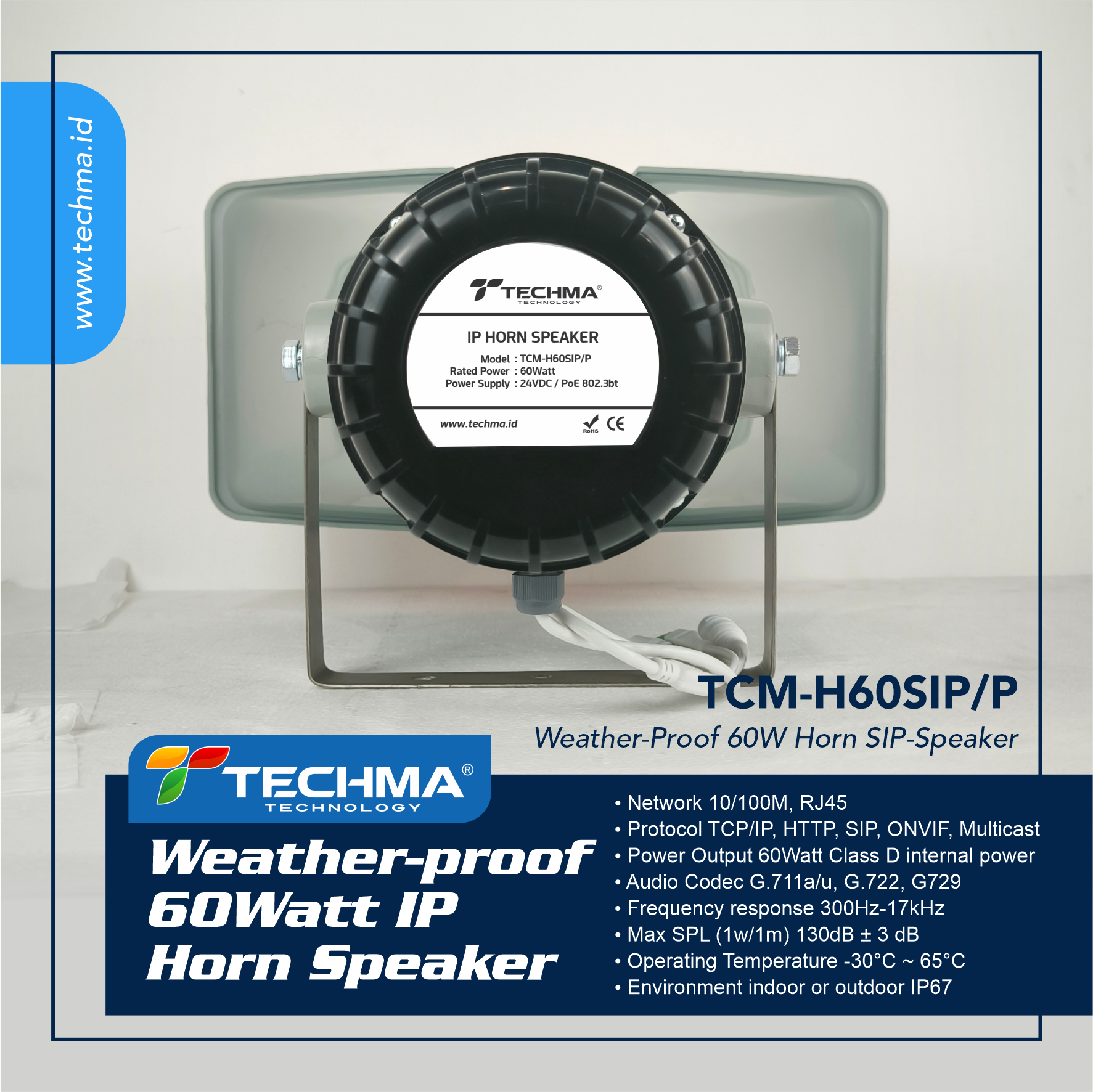

Network Outdoor Horn IP Speaker 60 Watt - TCM-H60SIP/P

The TCM-H60SIP/P is a high-performance 60W Network Outdoor Horn Speaker, designed to deliver clear and powerful audio in the most demanding industrial environments. As an "active" speaker, it features an industrial-grade built-in Class D amplifier, allowing it to function as a standalone network endpoint.

Description
Built for durability, the unit uses robust, virtually indestructible ABS or Aluminum alloy materials. With an IP66-rated weather-resistant design, it is ideal for extreme conditions such as oil & gas facilities, ports, chemical plants, tunnels, and shipbuilding. It leverages a high-speed dual-core (ARM + DSP) chip to provide seamless integration into PAGA (Public Address & General Alarm) systems via IP/Ethernet, supporting direct paging through SIP and multicast protocols.

Key Features
Industrial Power: Integrated 60W Class D amplifier for powerful sound output.
Weatherproof & Rugged: IP66-rated protection against dust and water, perfect for outdoor, exposed, or harsh environmental installations.
Network Connectivity: Uses standard RJ-45 (100BASE-TX) connectivity.
Protocol Support: Comprehensive support for TCP/IP, SIP, RTP, and Multicast for efficient communication.
Remote Management: Supports easy remote configuration, monitoring, and operation via PAGA Paging Manager software.
Easy Mounting: Equipped with a sturdy, adjustable steel bracket for precise aiming.

Technical Specifications
Speaker Rated Power: 60 Watts.
Network Interface: 100BASE-TX, MDI/MDI-X, RJ-45.
Communication Protocols: TCP/IP, UDP, Multicast, SIP, RTP, ARP, ICMP, IGMP.
Audio Codecs: G.711a, G.711u, G.722, G.729.
Audio Decoding Format: MP3, WMA, WAV (Bit rate: 64 ~ 320Kbps).
Frequency Response: 300Hz ~ 17kHz.
Max SPL: 130 dB (at 60W / 90W PoE++).
Power Source: 24VDC or High Power PoE++ (IEEE802.3bt).
**Operating Temperature: **-30°C ~ 65°C.
Dimensions: 220 x 400 x 430 mm.
Weight: 4.3 kg.
