SKU TCM-P102EXT 50 views In stock

PoE Splitter & Extender 1 to 2 - TCM-P102EXT

Buy

Short Description
TCM-P102EXT is an Indoor PoE Power Splitter & Extender designed to split one PoE cable line into two separate outputs while extending data and power range. This device is highly practical due to its Plug n Play nature—no additional power outlets or power supplies are required at the installation point. This results in a much neater installation, especially when used for IP Cameras, IP Speakers, or Wireless Access Points.

Key Features
1 to 2 Splitter: Converts one PoE input into two PoE outputs.
PoE Extender: Can extend transmission range up to a total of 400 meters with a cascading system (maximum 3 levels).
PoE Splitter: Can split 1 data + PoE cable into 2 with separate IP addresses.
Energy Efficient: No additional power supply required as power is drawn directly from the main PoE Switch.
Wide Compatibility: Follows IEEE802.3af/at protocol standards, making it compatible with various brands of IP Cameras, IP Phones, and IP Speakers.
Compact & Ready to Use: Plug n Play installation without the need for any settings.

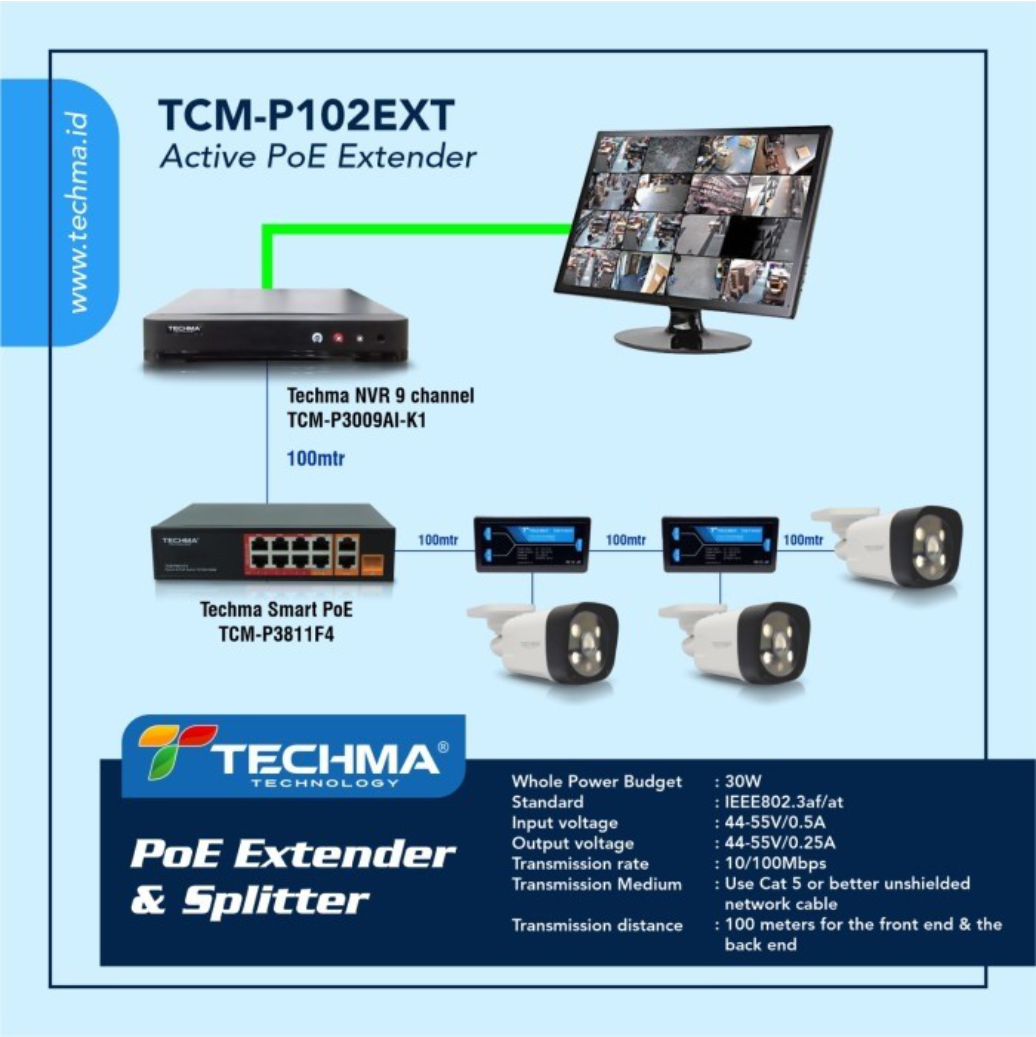

Technical Specifications
Port: 1x PoE Input (10/100M RJ45), 2x PoE Output (10/100M RJ45).
Power Budget: Up to 30 Watt.
Standard Protocol: IEEE802.3af/at.

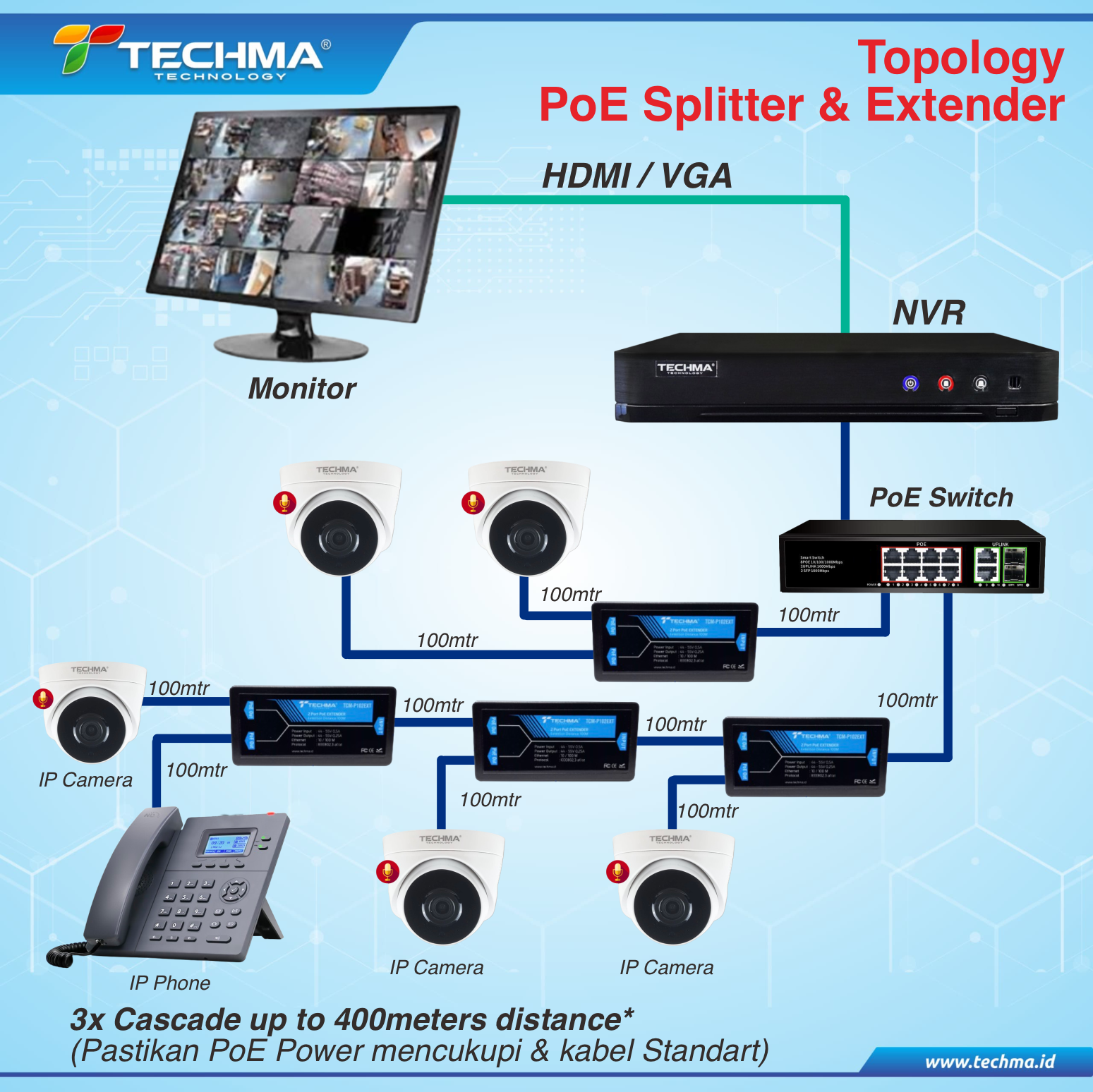

Distance: Supports cascading up to 3x maximum, total distance up to 400 meters.
Application: IP Camera, IP Phone, Wireless AP, IP Speaker, etc.
