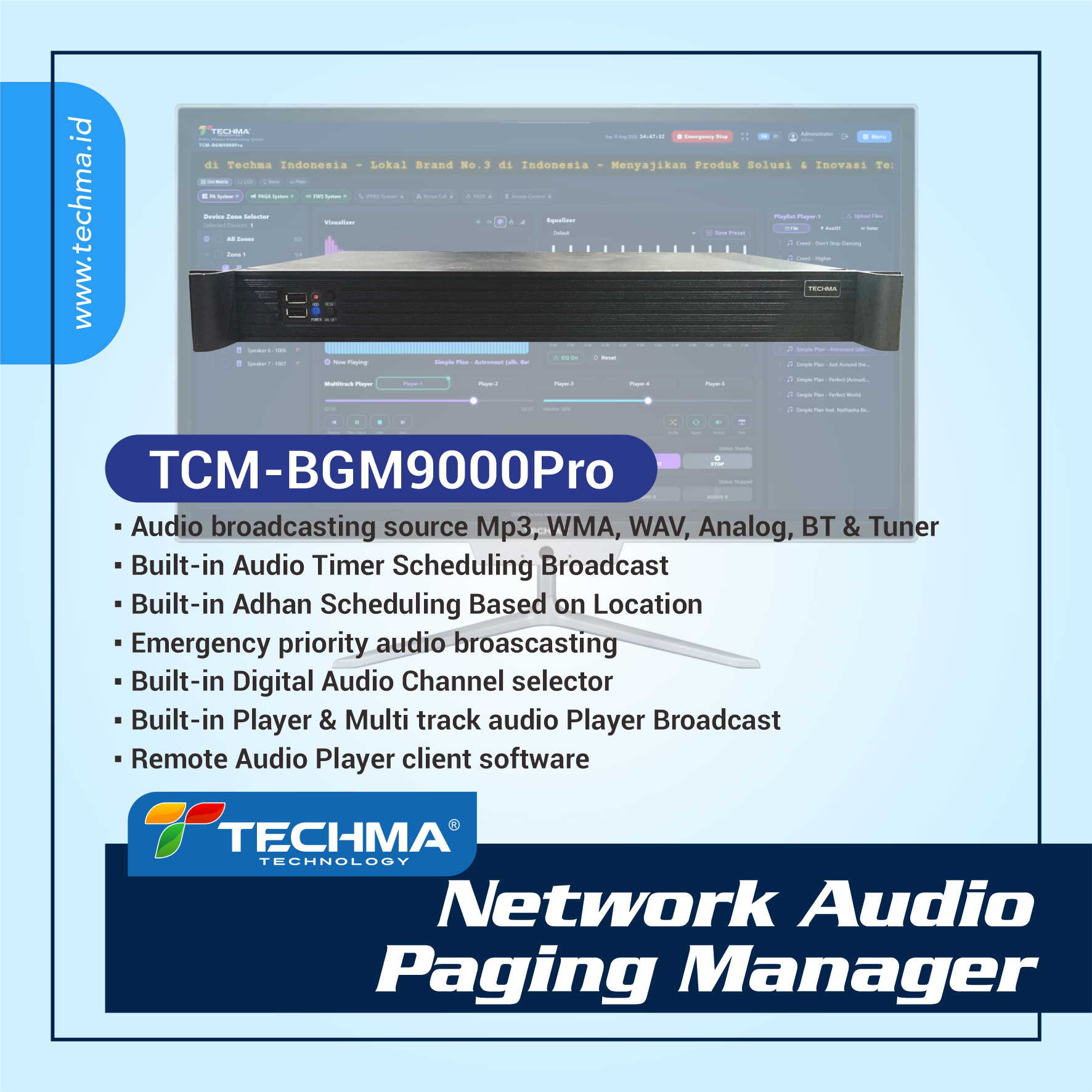

Public Address Server 100 Device - TCM-BGM9000Pro
Short Description
TCM-BGM9000Pro is an IP-based server specifically designed for large-scale PAGA system requirements, multi-zone background music (BGM), and complex emergency notification needs. This server acts as the heart of the PAGA system, connecting all network terminals (IP speaker, IP amplifier, IP Intercom, etc.) via LAN or fiber optic networks. It has a maximum capacity of 500 devices (default 100 devices with a perpetual license) and is expandable via module licenses and device licenses.
Key Features
- Capacity & Licensing: Includes 100 device licenses (perpetual). Additional licenses can be added if more extensions are needed, with a maximum capacity of up to 500 licenses.
- All-in-One System: Combines the functions of a PA Audio Server, IP Intercom, IP-PBX, Video Intercom, and Audio Broadcasting.
- Advanced Audio Management: Equipped with 5 Multitrack Players, 12ch Equalizer & Virtualizer for studio-grade sound quality.
- Automation: Features Audio Schedule, automatic Adhan (based on regional schedules), and an Evacuation Message Panel for emergency conditions.
- Broad Integration: Supports General Alarm link, API, HTTP, and MQTT, allowing integration with third-party systems.
- Redundant Fail Over: Mirroring backup feature to automatically switch to a slave (backup) server when the main server encounters issues.
- Form Factor: Compact and professional 1.5U Rackmount design for server room placement.
Add-on Features (License):
- IP PBX Module License - VoIP Communication System
- Nurse Call Module License - Hospital Intercom Solution
- EWS Module License - Early Warning System
- FGDS Module License - Fire Gas Detector System
- Access Control Module License - Integrated ACS
- Device License (up to 500 add)
Technical Specifications
Model: TCM-BGM9000Pro
Protocol: TCP/IP, SIP, RTP, and Multicast.
Engine: Intel® Core™ powered.
Network: 1000M Tx, RJ45 Connector.
Dimensions: 482mm (W) x 67mm (H) x 250mm (D).
Weight: 3.5 kg.
Operating Temperature: -10 to 50°C.
Datasheet
Solution
+Public Address Server / Controller
