SKU TCM-PM9804RM 95 views In stock

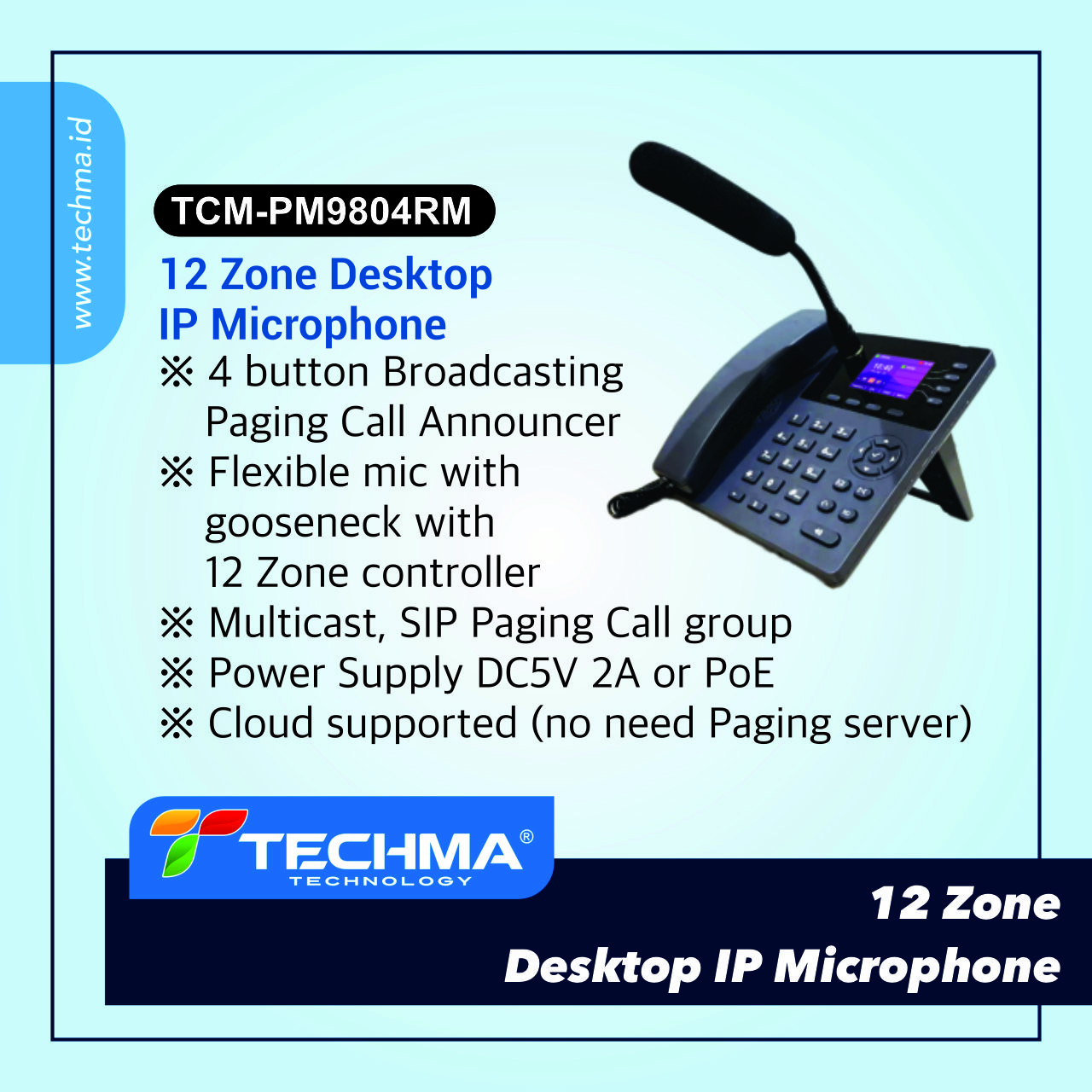

12 Zone Remote IP Microphone Call Station

Buy

Short Description
TCM-PM9804RM is a 12-Zone Desktop Paging Call Station designed as the primary control device in an IP Public Address System (PAS). This device is highly reliable for managing voice announcements to specific zones, multiple zones simultaneously, or broadcasting to all zones within a single building or across multiple buildings.

Key Features

  • 12-Zone Capacity: Allows for much more detailed control over large areas.
  • Programmable DSS Keys: DSS keys can be configured for various vital functions such as Blue Code, Red Code, Broadcast Audio Alarm, http API, remote Zone Grouping, and integration with CCTV.
  • Two-Way Intercom: Equipped with an internal speaker, enabling two-way communication between IP Microphones.
  • Gooseneck Microphone: High-quality, sensitive gooseneck microphone for clear sound.
  • User-Friendly Design: Equipped with an LCD screen to display zone status and easy-to-understand menu navigation.
  • Industry Standard Protocols: Supports SIP, RTP, TCP/IP Multicast, and IGMP, making it very easy to integrate into existing LAN networks.

Technical Specifications

  • Network Interface: 100BASE-TX, RJ-45 Connector.
  • Audio Codec: G.711a/u, G.722, G.729 (clear sound quality).
  • Power Supply: Supports PoE (IEEE802.3at) or DC 5V adapter.
  • Display: LED Color LCD Display.
  • Applications: Highly suitable for factories, government agencies, schools, and large hospitals.

Datasheet
