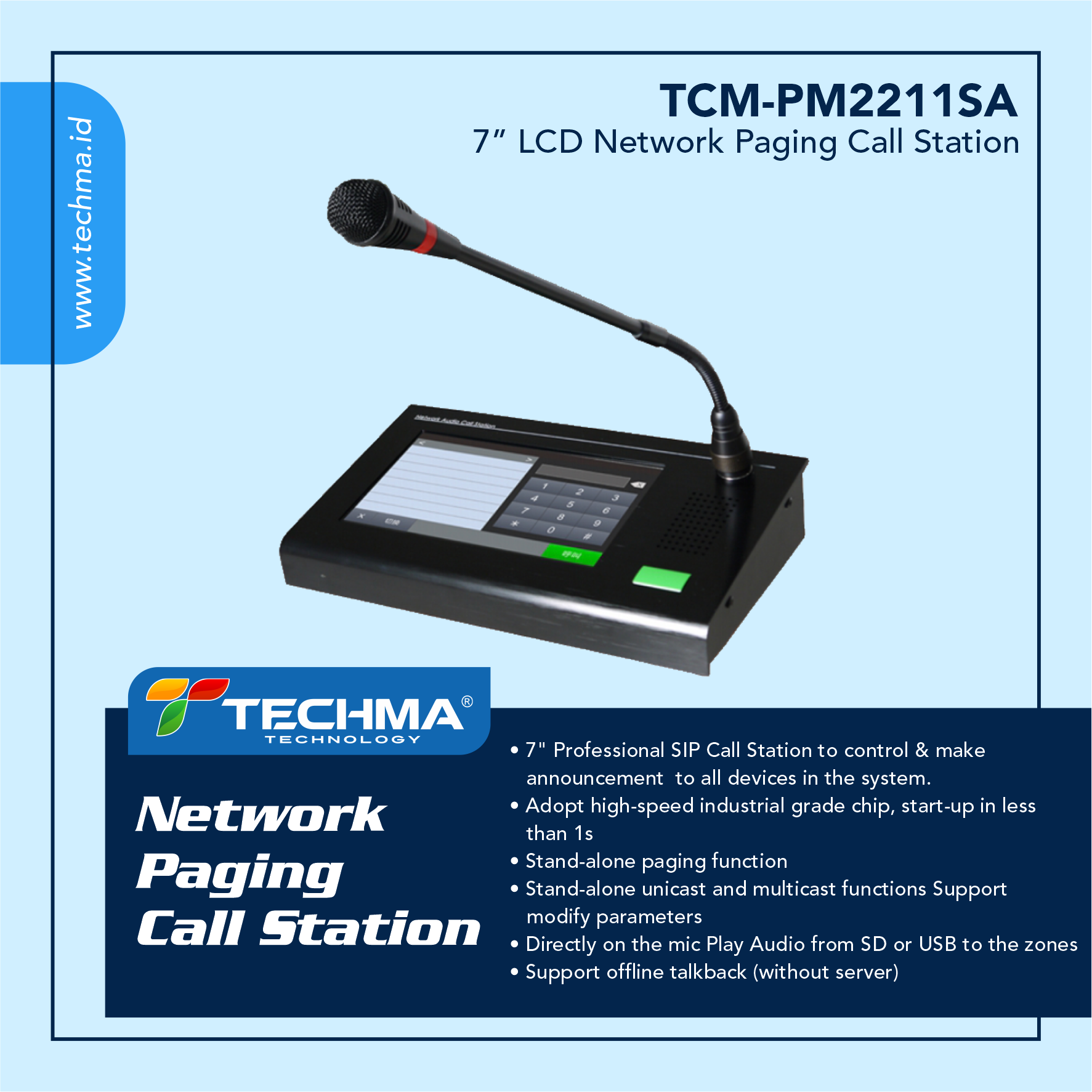

7" LCD Network Paging Call Station - TCM-PM2211SA

The TCM-PM2211SA is a 7" LCD Network Paging Call Station designed as a professional SIP-based intercom host. It acts as the command center for IP-based communication systems, allowing for seamless paging, intercom, and emergency alarm management.

Short Description
Built with a high-speed industrial-grade chip, this paging station offers a rapid startup time of less than 1 second. It combines a user-friendly touch interface with professional audio processing, making it an essential tool for control rooms and security centers. Whether you are managing classrooms, hospitals, or parking lots, the TCM-PM2211SA provides crystal-clear two-way communication and easy zone control.

Key Features
Intuitive Control: Features a 7-inch high-resolution touch screen that makes navigating zones and managing intercoms simple and quick.
Rapid Response: Utilizes a high-speed industrial chip for instant startup (under 1s), ensuring you are always ready during emergencies.
Stand-alone Functionality: Supports offline talkback (without a server), enabling direct point-to-point intercom and multicast functionality.
Direct Media Playback: You can plug in a USB drive or SD card directly to the microphone to play background music or pre-recorded emergency announcements to designated zones.
SIP Compatibility: Fully compatible with standard SIP protocols, allowing it to integrate seamlessly into existing VoIP and IP-PBX systems.
Full-Duplex Intercom: Equipped with advanced echo suppression for high-quality, clear two-way communication.

Technical Specifications
Network Protocol: SIP, UDP, Multicast.
Network Interface: 10/100Base-TX, RJ45.
Sampling Rate: 8kHz – 32 kHz, 16 bit.
Decoding: MP3, ADCP.
Microphone Frequency: 70Hz ~ 12.5KHz.
Display: 7" Touch Screen.
Power Supply: DC 12V 2A.
Operating Temp: 0°C ~ 65°C.
Dimensions: 250 x 145 x 55 mm.

Industrial Applications
The TCM-PM2211SA is versatile and ideal for environments requiring real-time monitoring and paging:
Security Control Centers: Serving as the primary host for bank, interrogation room, or parking lot intercom systems.
Healthcare Facilities: Used in hospitals for two-way communication between nursing stations and patient rooms.
Education: Managing paging and emergency alerts across large school campuses or classrooms.
Industrial & Commercial: Ideal for facilities needing a centralized station to trigger alarms, monitor areas, or make live announcements.
