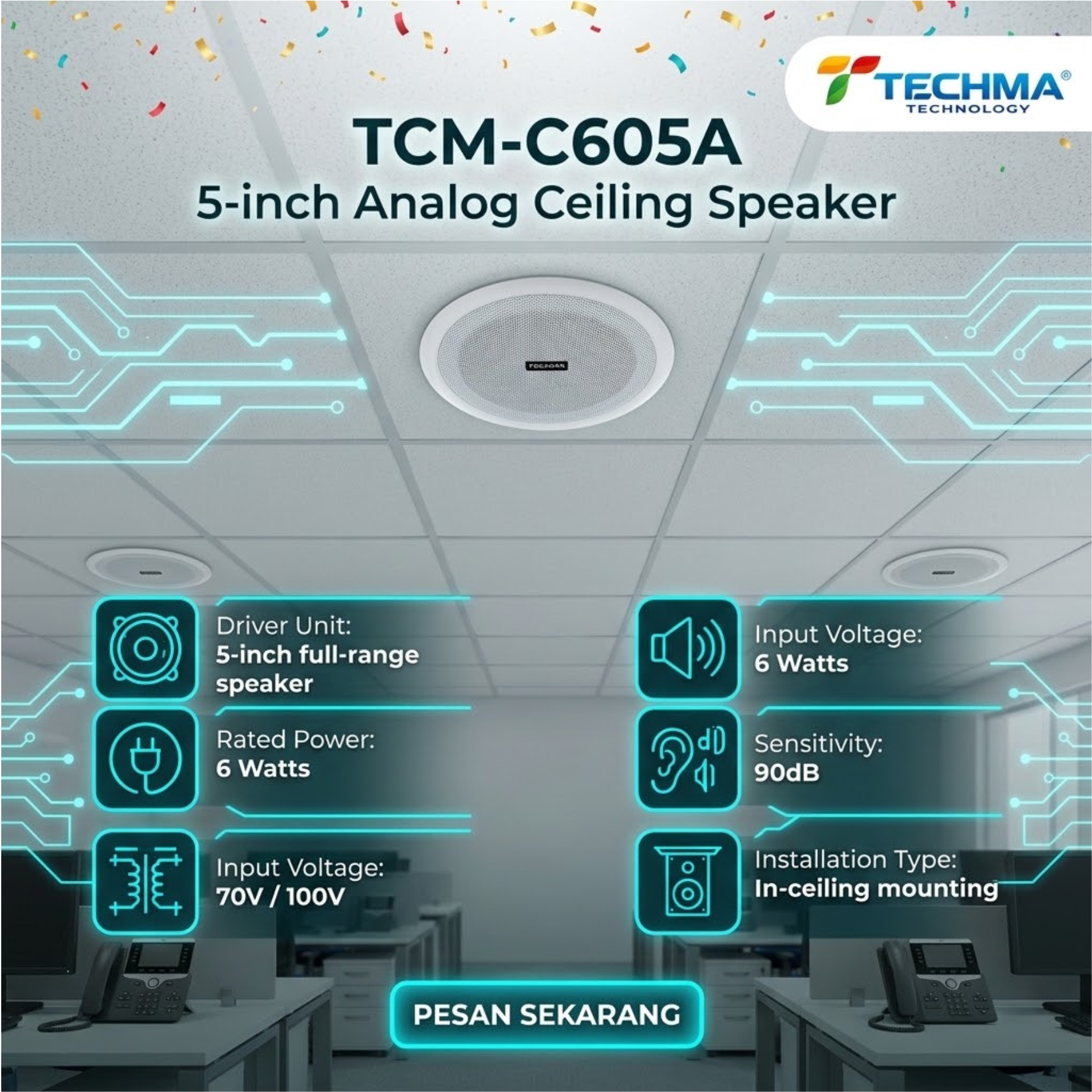

Analog Ceiling Speaker - TCM-C605A
Product Description
TCM-C605A is a 5-inch Analog Ceiling Speaker designed for professional installations. This speaker is perfect for background music (BGM) and paging system requirements in office spaces, hotels, corridors, or retail stores. Its in-ceiling design keeps the ceiling appearance minimalist and clean without taking up space.
Key Features
High-Fidelity Audio: Uses a 5-inch driver that produces clear and natural sound, perfect for both vocals and music.
70V/100V Matching System: Equipped with a built-in matching transformer, allowing you to install multiple speakers in parallel over a long cable run without worrying about signal quality loss.
High Sensitivity: Features 90dB SPL, meaning the sound remains effective and loud even with efficient power consumption.
Easy Installation: Designed with a spring flush-mount system that makes the ceiling installation process fast, sturdy, and neat.
Technical Specifications
Driver Unit: 5-inch full-range speaker.
Power Output: 6 Watt.
Line Voltage: 70V / 100V (High Impedance).
Sensitivity: 90dB (1W/1m).
Frequency Response: 100Hz – 18kHz (-20dB).
Dimensions: Ø 170 x 77 mm.
Cut-out Hole: Ø 160 mm.
Material: ABS frame with metal grille.
Net Weight: 470 grams.
Field Implementation
This speaker is highly flexible and is often relied upon for areas such as:
Offices: For staff paging and background music in lobbies or building corridors.
Hotels: Ideal for announcements or ambient music in room hallways and public areas.
Retail & Showrooms: Provides even music distribution throughout the store area to make the shopping atmosphere more comfortable.
Waiting Areas: Waiting rooms that require sound clarity with an appropriate volume level (not too booming).
