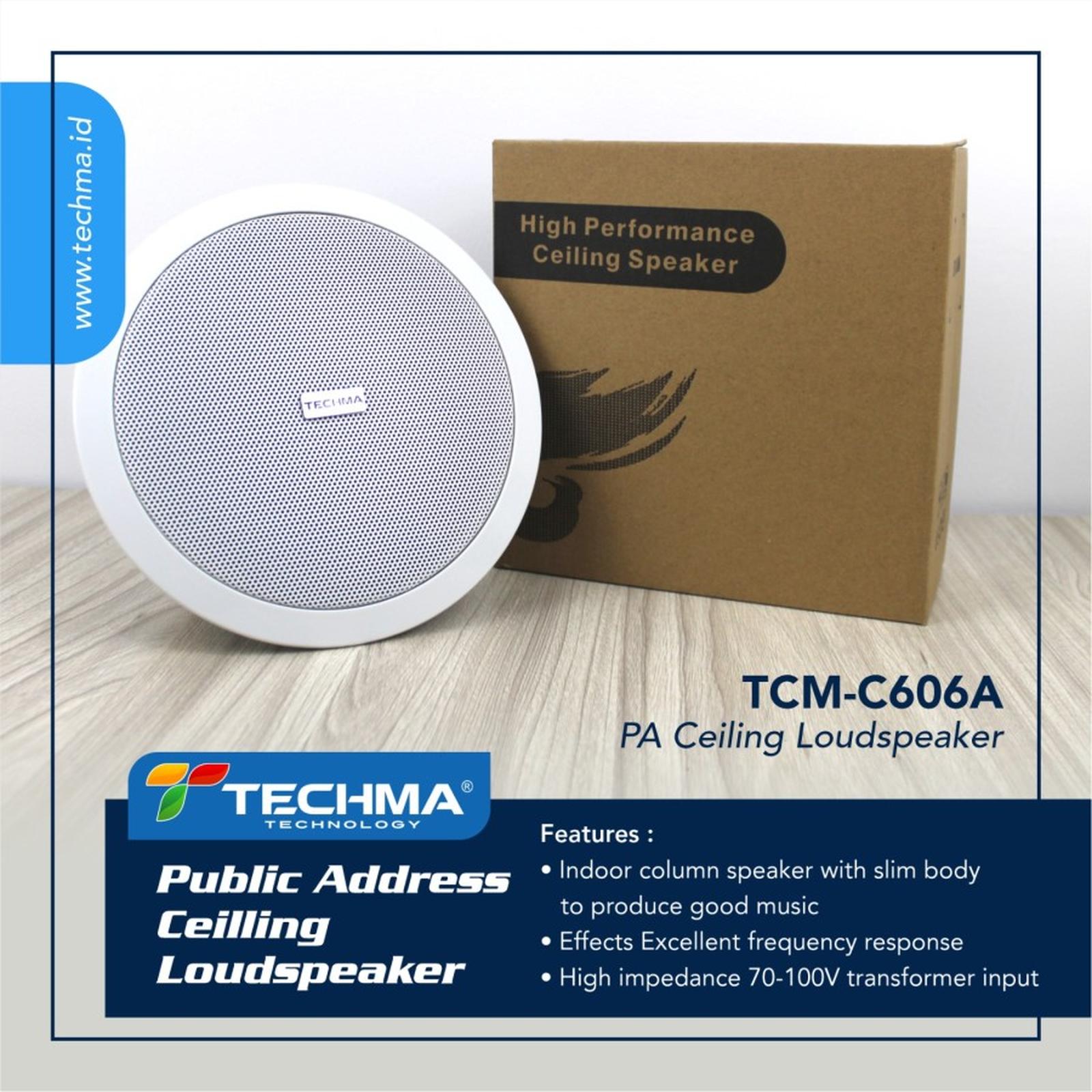

Analog Ceiling Speaker - TCM-C606A
Product Description
The TCM-C606A is a 6-inch Analog Ceiling Speaker designed for indoor sound systems (in-ceiling). This speaker is highly flexible and reliable, making it a preferred solution for areas that require clear audio distribution while maintaining an aesthetic and neat ceiling appearance.
Key Features
Power Output Selectable: You can choose between 3 Watt or 6 Watt power according to the volume requirements in each area.
70V/100V Matching System: Equipped with a built-in transformer that allows for long cable installations in large buildings without worrying about signal quality degradation.
High Sensitivity: With an SPL of 93dB, announcements and background music sound much louder and clearer.
Quick Installation: Uses a spring flush-mount system that makes the installation process very efficient and ensures a very neat look once installed.
Technical Specifications
Driver: 6-inch full range.
Power Output: 3 Watt / 6 Watt (selectable).
Line Voltage: 70V / 100V matching.
Sensitivity (SPL): 93dB.
Frequency Response: 100Hz – 18kHz.

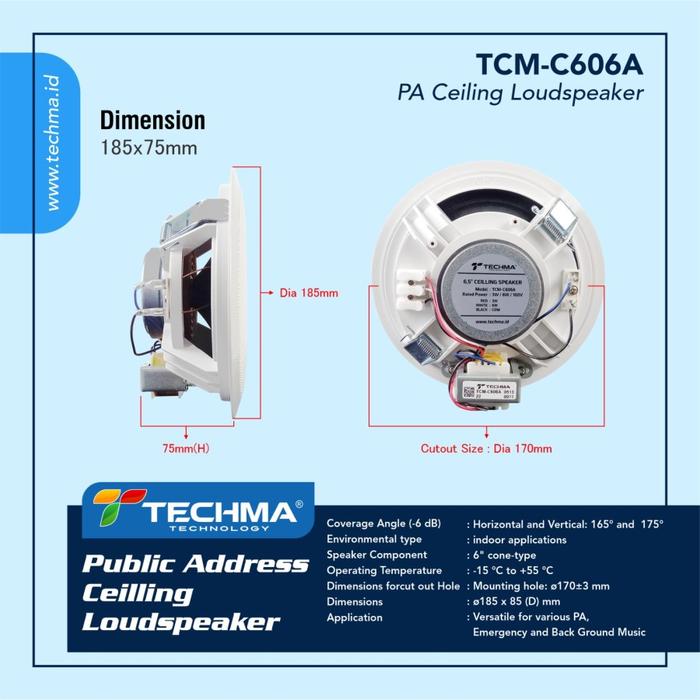

Dimensions: Ø185 × 75 mm.
Cut-out Hole: Ø170 mm.
Material: ABS housing with iron grille.
Weight: 0.7 kg.
Field Implementation
This speaker is highly versatile and is often found in:
Office Buildings: For paging systems or calling employees in workspaces and meeting rooms.
Commercial Areas: Very suitable for background music in shops, cafes, or supermarkets to make the room atmosphere more comfortable.
Public Service Centers: Used for information announcements in lobbies, waiting rooms, or building corridors.
Evacuation Systems: Can be integrated as part of an emergency announcement system if connected to an amplifier that supports fire alarm features.
