Network Audio Gateway - MX-GW30RTL
Short Description

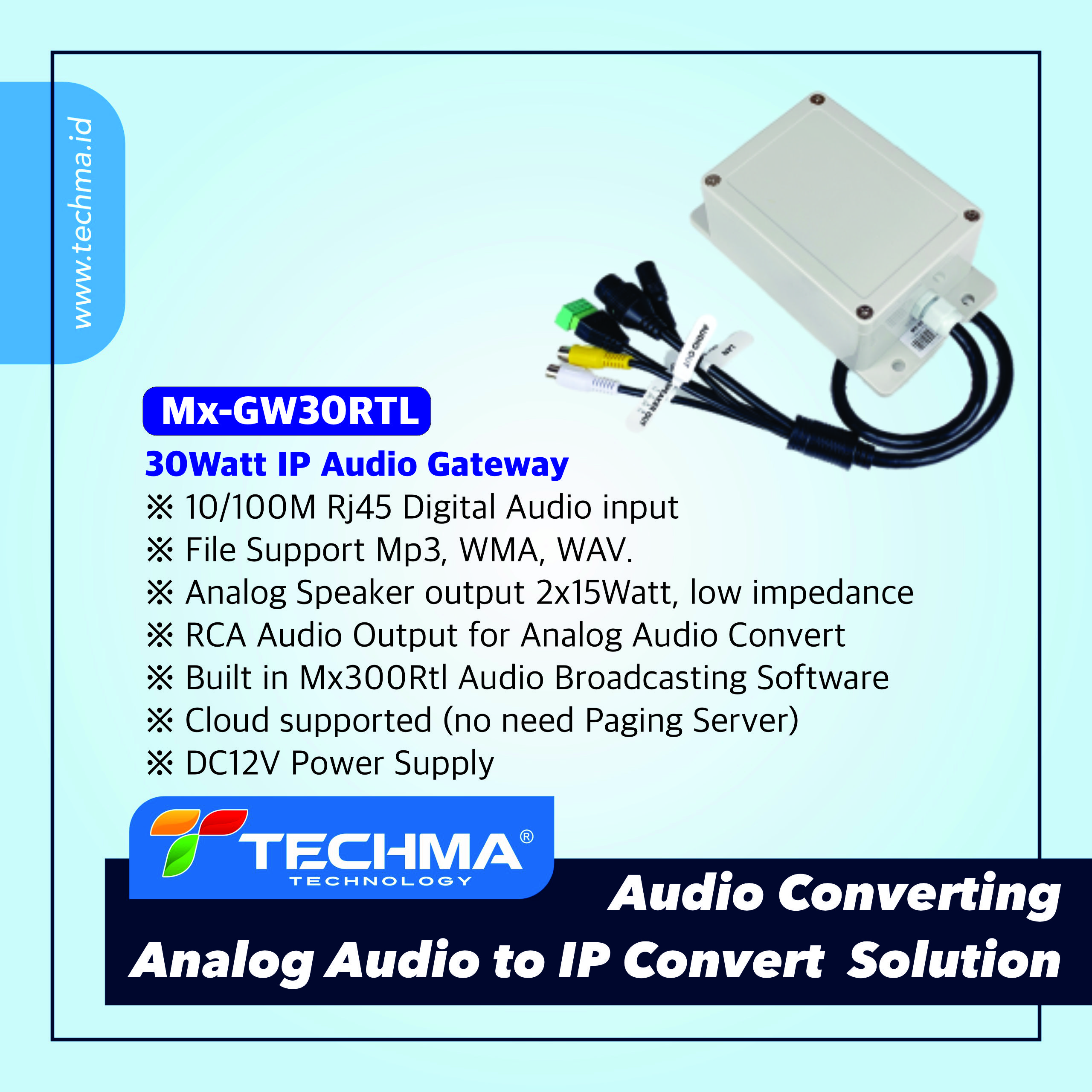

MX-GW30RTL is a Network Audio Gateway that functions to convert analog speaker or amplifier systems into network-based (IP) audio systems. This device is equipped with an industrial-grade 2x15 Watt internal amplifier. So, if your school or office already has analog speakers installed, there is no need to replace everything—simply plug them into this device, and your system is instantly upgraded to a sophisticated IP system!
Key Features
Convert Analog to IP: A cost-effective solution for converting analog Public Address audio into Network Audio.
2-Channel Amplifier: Features a built-in 2x15 Watt Class D amplifier, powerful enough to drive analog speakers directly (4-8 Ohm load).
Wide Flexibility: Supports industry-standard protocols such as SIP, Multicast, TCP/IP, and RTP.
Standalone Operation Mode: Can work without a central server (standalone mode), simply by configuring multicast.
Cloud Support: Supports Cloud functions, allowing you to control the system remotely.
Power Options: Flexible with 12VDC or support for 30 Watt PoE (Power over Ethernet).
Technical Specifications
Rated Power Output: 2 x 15 Watt.
Network: RJ45 10/100 Mbps.
Audio Format: Supports MP3, WAV, WMA.
Input: RJ45 (Digital Data), 2x RCA (for additional output to external amplifiers).
Protection: IP55 (safe for indoor use).
Dimensions: 120mm x 95mm x 80mm.
Weight: 850g.
Industrial Applications
This device is very popular in various sectors:
Schools: Converting manual/analog bells into automatic bell systems based on digital schedules.
Hospitals: Used for paging calls integrated with hospital networks.
Offices/Buildings: Efficient for announcement systems in multiple rooms without having to pull cables from a large amplifier at a single central point.
Factories: Used as a gateway for IP-based emergency alarm systems.
Hotels: Suitable for background music management in specific areas connected to a LAN.
Highways / Traffic Lights: For traffic information.
