Network Ceiling IP Speaker 15 Watt - Mx-C15RTL

Buy

Short Description
Mx-C15RTL is a 15-Watt Network Ceiling IP Speaker elegantly designed for ceiling installation. As an active speaker with an internal Class D amplifier, you do not need to bother running cables from a large amplifier to each speaker. Simply plug in a LAN cable (PoE), and the speaker is immediately active. It is very neat, efficient, and provides crystal-clear sound quality for both background music and announcements.

Key Features
PoE Technology: Uses a LAN cable for both data and power, significantly saving on electrical cabling installation costs.
Protocol: Supports SIP, Multicast, and TCP/IP, making it very easy to integrate into any Public Address system.

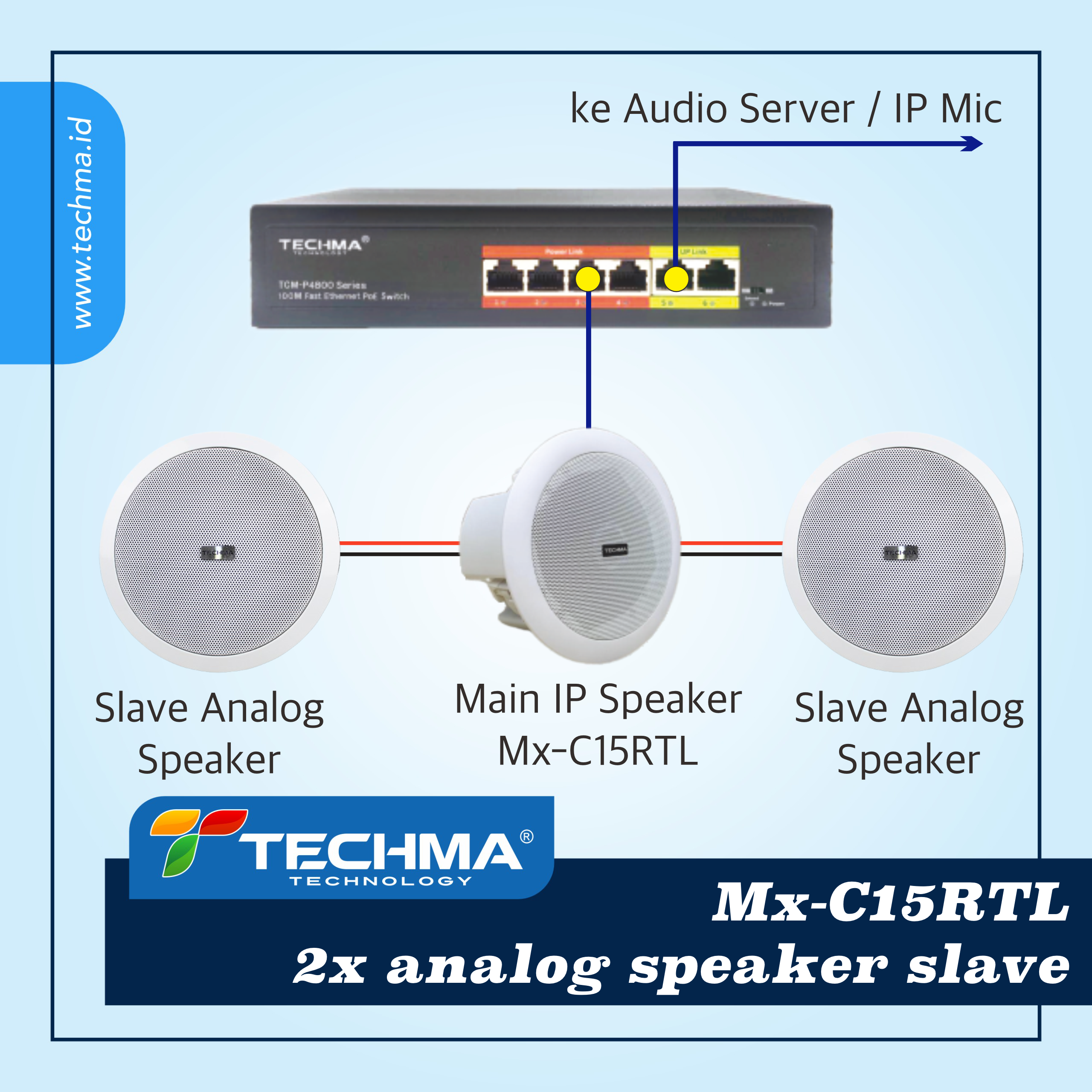

Slave Output: This is a unique feature! You can connect up to 2 additional analog (passive) speakers as slaves, allowing one network point to cover a wider area.
Standalone Mode: Can work independently without the need for a central server; simply multicast from an IP Mic or software.

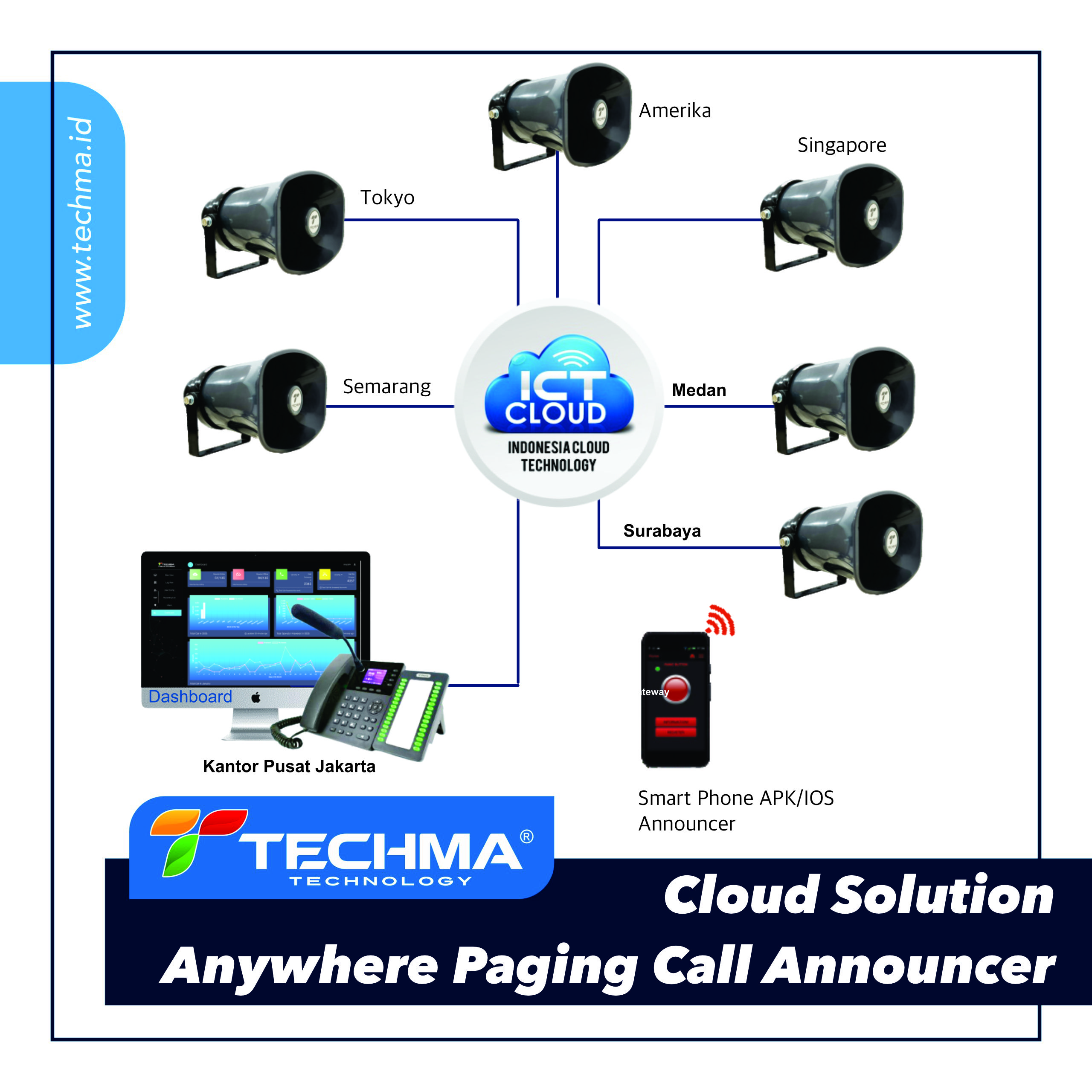

Cloud Management: Very easy to configure remotely using the Roadlink Audio Manager Software Mx300RTL.

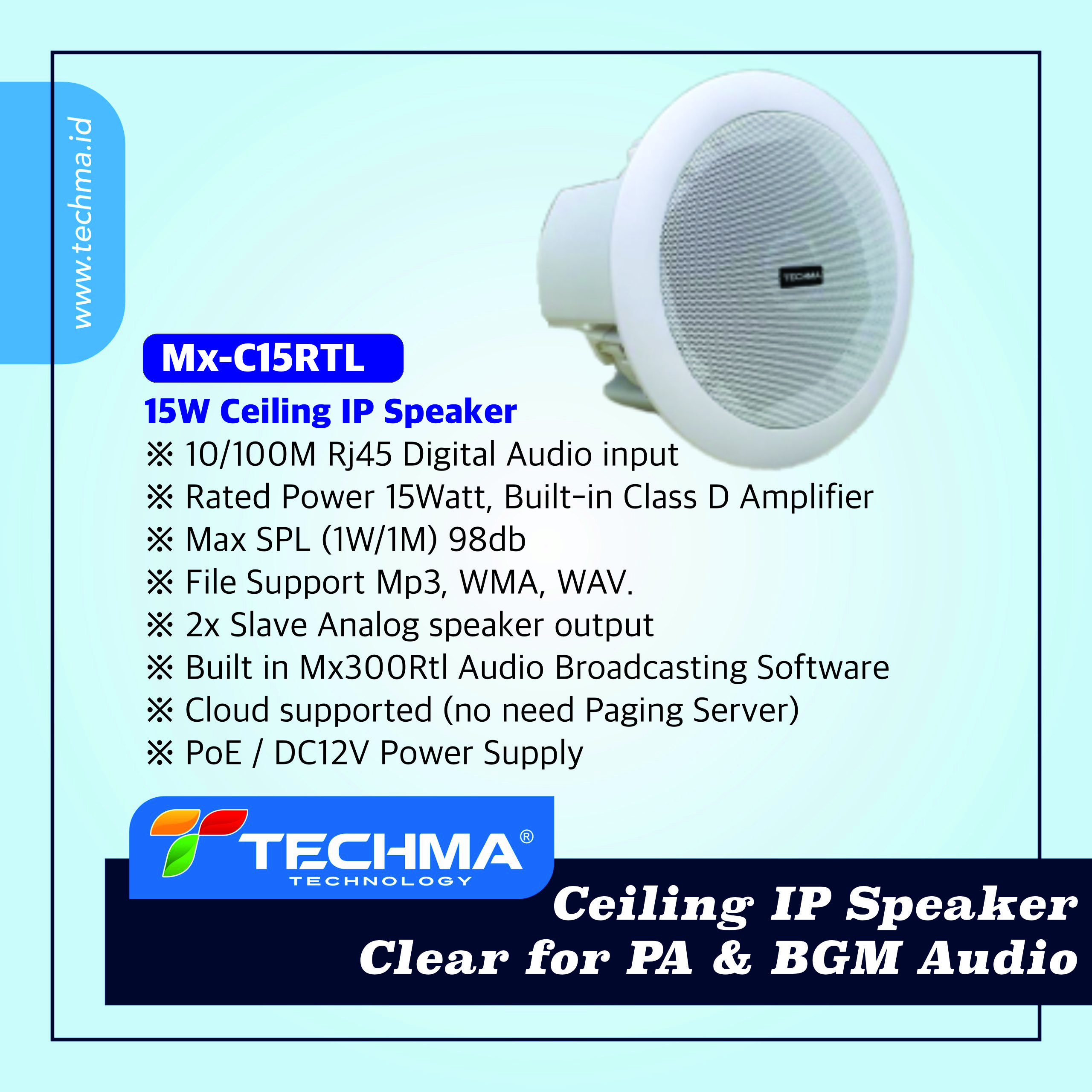

Technical Specifications
Power Output: 15 Watt (Active Speaker).
Network: RJ45 10/100 Mbps.
Audio Codec: G.711a/u, G.722, G.729.
Power Supply: 12VDC or PoE (IEEE802.3at/bt).
Expansion: Support max 2x Cascade (Speaker Slave output 15W).
Material: ABS Fire-resistant (safe for building installations).

Industrial Applications
Offices & Meeting Rooms: For non-intrusive background music and clear announcement audio.
Schools/Classrooms: Ideal for automatic bell systems or teacher instructions from a central room.
Hotels & Restaurants: Provides a comfortable atmosphere in lobby areas, corridors, or waiting rooms.
Hospitals: Used for nurse calls or general announcements in patient waiting areas.
Shopping Centers: Effective for music distribution and promotional information in indoor areas.

jst-70008-00027

Datasheet

+SMB Network Speaker
