PoE Switch 10 Port Full Gigabit - TCM-P4810G4
General Description
The TCM-P4810G4 is an 8-Port Full Gigabit PoE Power Link Switch. This device is specifically designed for professional installations that require maximum data transfer speeds on every port. Since all ports (both PoE and Uplink) support Gigabit speeds (1000 Mbps), this switch is highly suitable for high-resolution CCTV systems (such as 4K/8MP) or audio/video networks that require large bandwidth.
Complete Technical Specifications
Port Capacity: 8x 100/1000Mbps PoE Ports (RJ45) - All PoE ports are Gigabit!
2x 1000Mbps Uplink Ports (RJ45) - Also Gigabit.
Power Budget: 120 Watt (very stable for supplying 8 heavy-duty PoE devices).
Protocol: Supports IEEE 802.3af/at standards.
Key Features:
Extended Mode: Supports a range of up to 250 meters for data and power transmission.
Auto-Sensing: Automatically recognizes devices that require PoE, making it very safe.
Power Source: AC 90V - 240V (Direct power, no additional adapter needed).
Protection: Equipped with built-in 6kV lightning protection, Techma security standard to protect devices from power surges.
Why Use the G4 Series (Full Gigabit)?
No Bottleneck: Because every port is Gigabit, you will not experience lag when sending data from multiple 4K cameras to an NVR simultaneously.

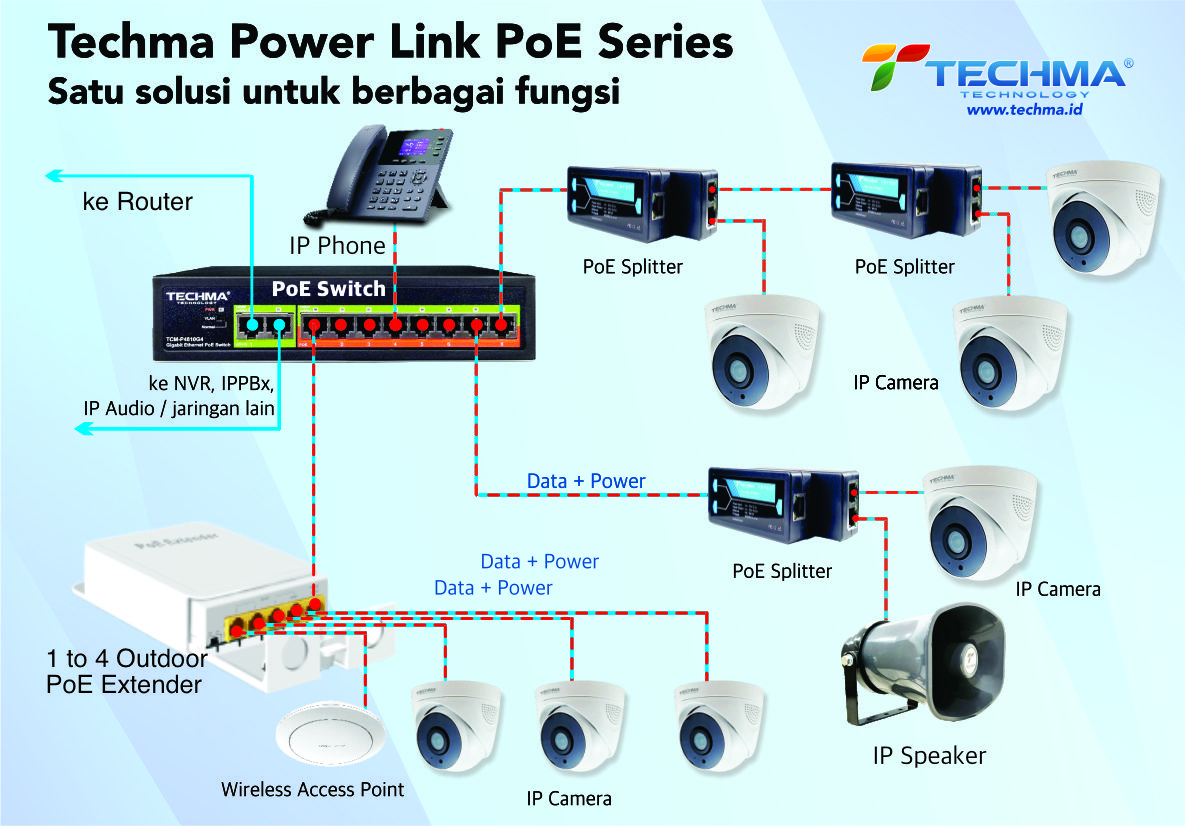

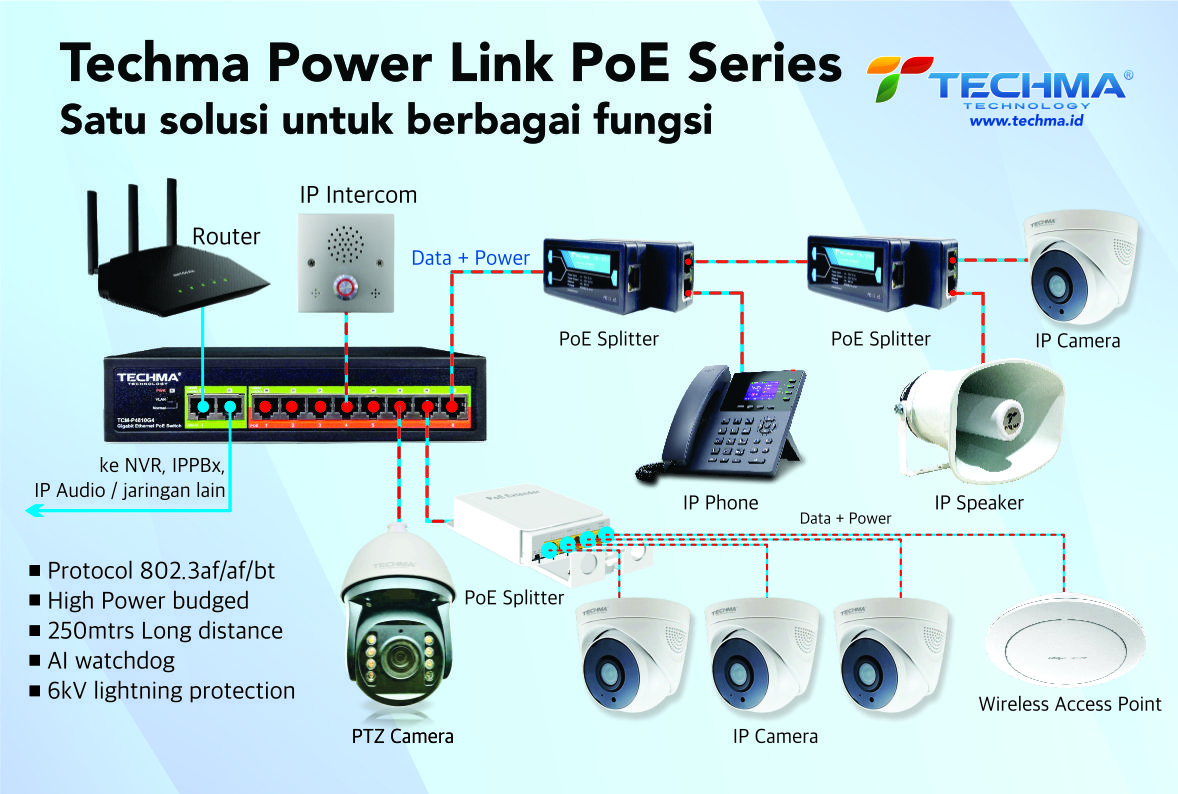

High Flexibility: Suitable for all types of IP devices: IP Cameras, WiFi 6 Access Points, IP Phones, or advanced IP Speakers.
Long-Distance Installation: The 250m Extended feature is still included, so even though the performance is fast, the installation range remains wide.
Reliability: As a Full Gigabit device, this tool is much more resistant to heavy data traffic loads compared to regular 10/100 Mbps switches.
