SKU TCM-P4819G2F-2 48 views In stock

PoE Switch 19 Port Hybrid , Uplink Gigabit + SFP - TCM-P4819G2F

Buy

Short Description
TCM-P4819G2F is a 16-Port Hybrid Power Link PoE Switch equipped with Gigabit Uplink. This switch is designed for high stability in supplying power to devices such as IP Cameras, IP Phones, Wireless Access Points, and IP Speakers. Perfectly suited for SMB (Small to Medium Business) needs, it features 1 SFP uplink port that can be fitted with a Fiber Optic SFP module for distances up to 20km (depending on the SFP model).

Key Features
Gigabit Uplink: Equipped with 2 Gigabit RJ45 and 1 SFP Gigabit combo port, ensuring maximum data transfer speeds for uplinking to NVRs or servers.
Long-Distance Transmission: Supports PoE transmission up to 250 meters for Cat6e UTP cables and up to 20km for Fiber Optic SFP, greatly simplifying installation in locations far from the server room.
Large PoE Budget: Features a total power budget of up to 250W, large enough to power many devices simultaneously without fear of downtime.
Plug & Play: An unmanaged switch, making it very easy to use—just plug it in and it runs immediately without the need for complex configuration.
Rack Mount Design: The form factor is designed to be installed in a server rack (19 inches), making cable management neater and more professional.

Technical Specifications
Interface: 16 x 10/100M RJ45 PoE ports, 2 x Gigabit RJ45 port, 1 x SFP Gigabit combo port.
PoE Protocol: Supports 802.3af/at.
PoE Budget: 250W.
Transmission: Maximum 250 meters.
Type: L2, Unmanaged.
Warranty: 2 Years.

Datasheet

  • DATA SHEET POE TECHMA 16+2+1 Port Hybrid889 KB Open Download

Solution

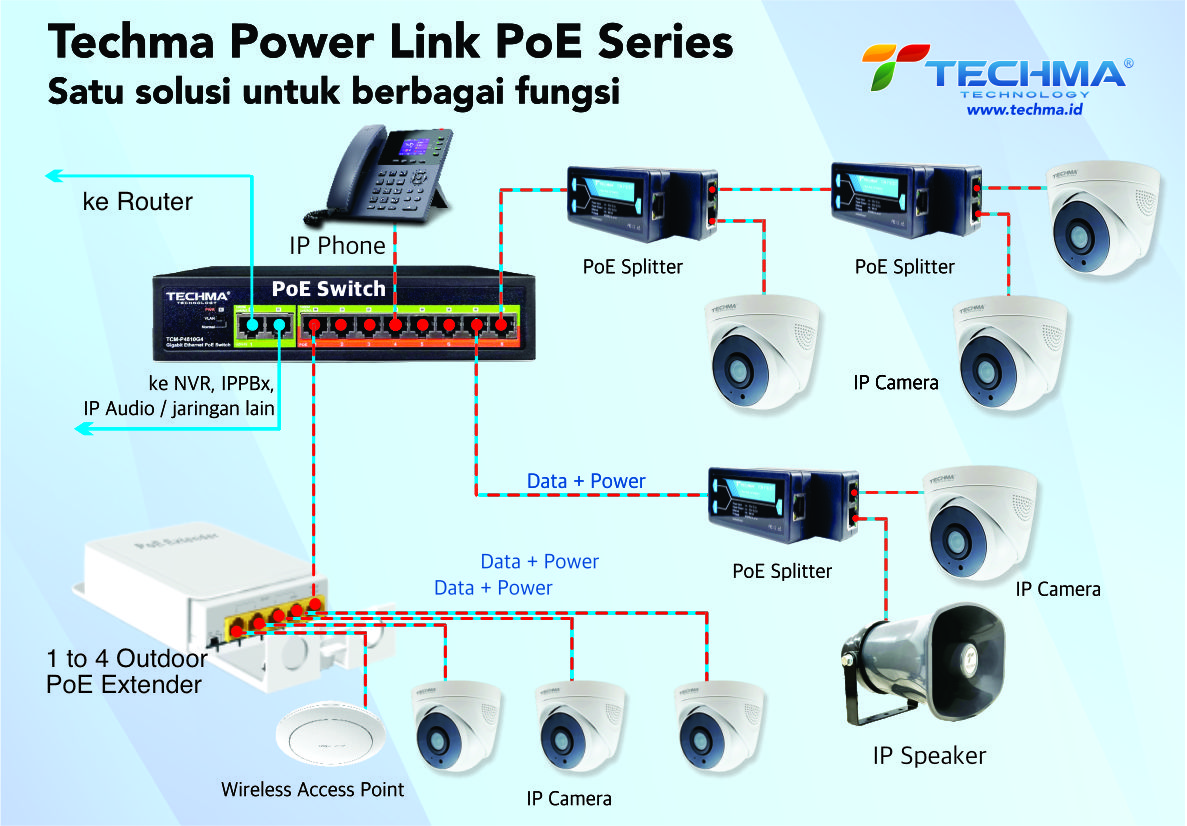

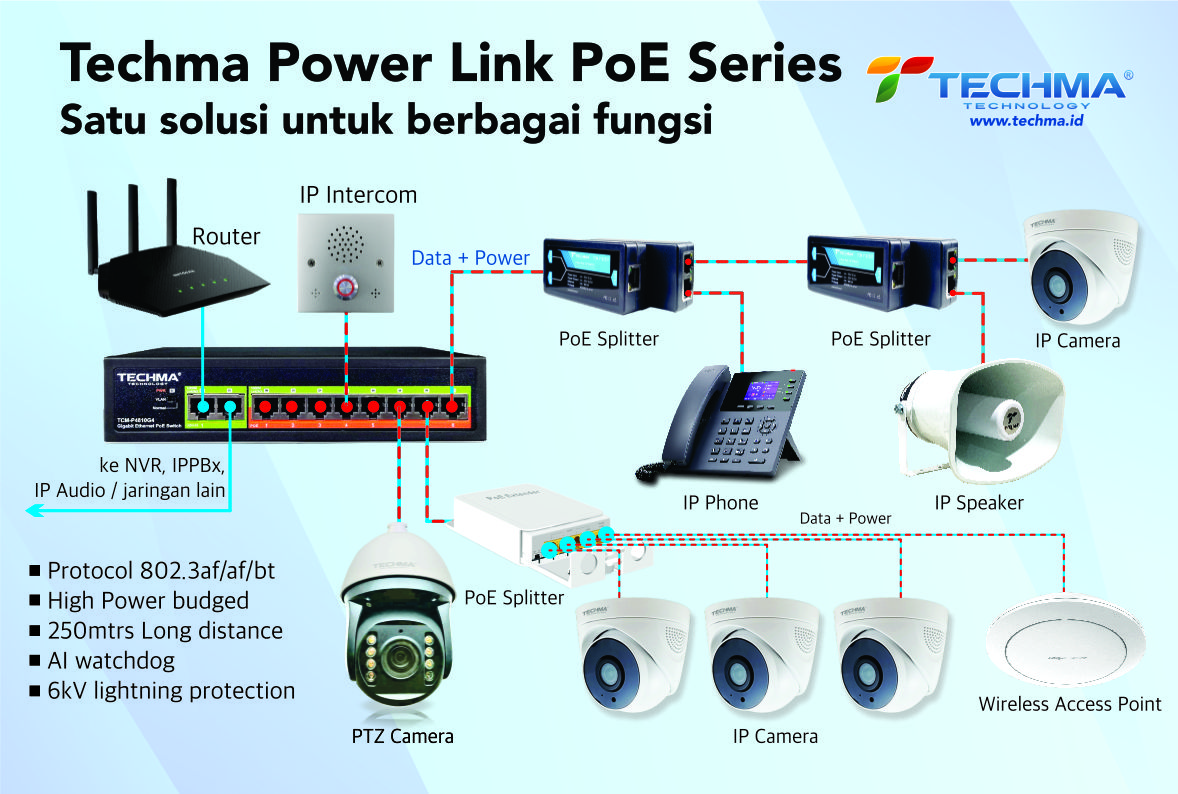

SMB Multi IP Solution
SMB Multi IP Solution Enlarge ↗
